Oracle Data Visualization Cloud Service – Managing Data Sources

Philip Ratcliffe Aug 19, 2016 12:14:23 PM

Since Oracle has expanded its Data Visualization portfolio, (particularly with the launch of Data Visualization Cloud Service (DVCS) and Data Visualization Desktop (DVD)), I have written a couple blogs providing an overview of the two products’ key features and, more recently, an overview of access controls in DVCS.

This month’s post will focus particularly on managing data sources in DV and highlighting key differences between DVCS and DVD.

Data Sources

Data sources within DV can be managed by clicking on the ‘Data Sources’ card in the home page in both DVCS and DVD.

On entry, a list of the data sources that have already been created is displayed. Additionally, the user is presented with buttons to create a new data source or to manage connections.

Managing Data Sources

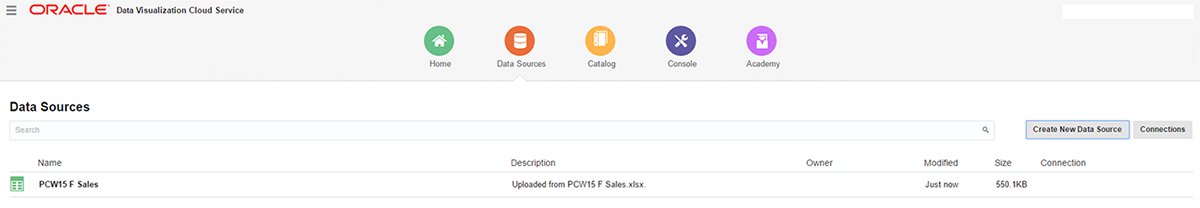

Figure1. DVCS Data Sources.

Data can be retrieved from a number of sources as outlined in the table below.

Data Source Description DVCS DVD
Excel spreadsheet Create a data source from an Excel file Yes Yes
Oracle Applications Oracle Cloud Applications:


  • Use analysis from Oracle applications catalogs as a data source
  • Enter logical SQL to retrieve data to form the data source
Yes Yes
Database Direct connection to on-premise RDBMS No Yes

While direct connection to on-premise databases in DVCS is not yet possible, it is possible to use other tools to add to DVCS data sources, for example:

  • Use the Oracle Data Visualization Cloud Service REST API to load on-premise data to DVCS
  • Data Sync can upload on-premise data from the following source:
  • CSV or Microsoft Excel file
  • Relational source
  • SQL Query
  • Oracle Transactional Business Intelligence source


Data sources can also be created whilst in a Visual Analyzer project.

Database Connection in DVD

DVD has the advantage over DVCS of allowing direct connection to on-premise databases.
These include to:

  • Oracle
  • Spark
  • SQL Server
  • DB2
  • MySQL
  • Teradata
  • Redshift
  • Hive
  • Impala
  • MongoDB
  • Sybase IQ
  • Salesforce
  • Greenplum (Beta)
  • RightNow (Beta)

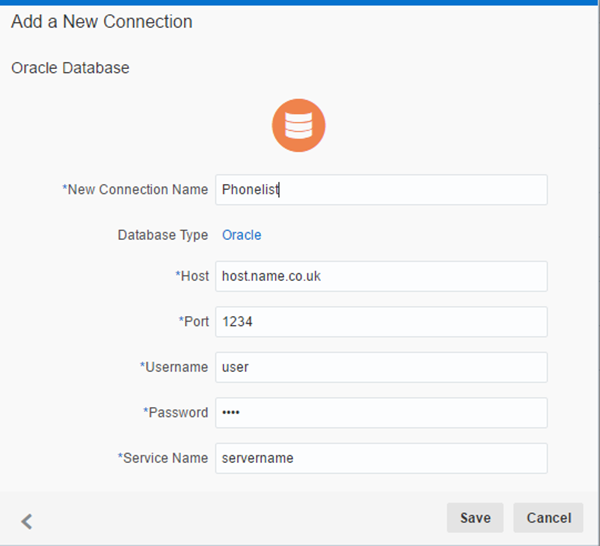

To do this in DVD, within Data Sources click on the “Connections” and then “Add Connection”, then select “From Database” card.

Enter the required connection details, including selecting from the list of database types.
Managing Data Sources

Figure 2. DVD Database Connection.

Note: A new connection can be created by the same means via the “Create New Data Source” button.

To create a data source from the new connection, click on the “Create New Data Source”, then the “From Database” card. Your database connection is established, so select from the list of schema and then from the list of tables in the database to create your data source.  Alternatively, instead of selecting specific tables, the users can enter their own SQL to generate the data source.

Managing Data Sources

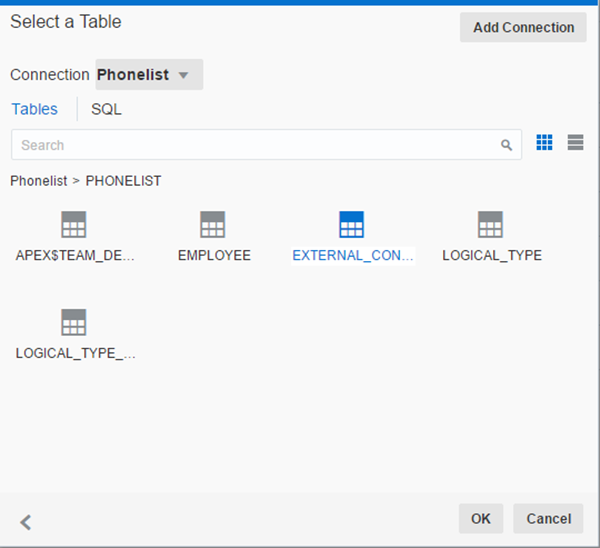

Figure 3. DVD Database Table Data Source.

Once selected, the user can select the query mode:

  • Use local cache
  • Live – sends live database queries for every analysis

Managing Data Sources

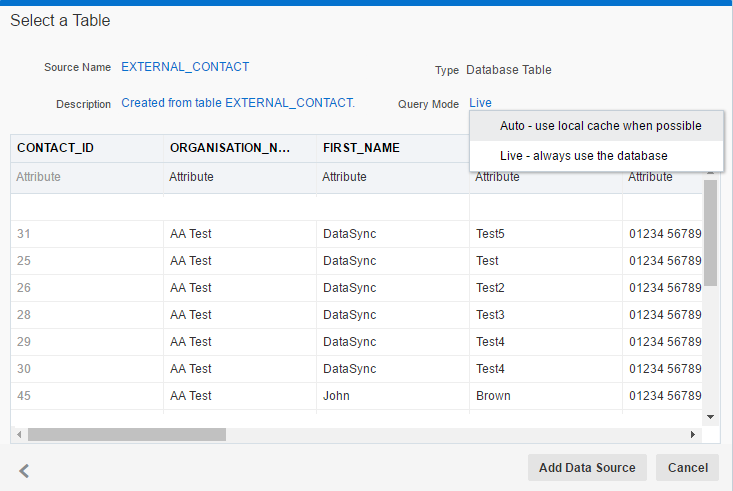

Figure 4. DVD Database Data Source.

Then “Add Data Source” and the EXTERNAL_CONTACT data source is now in the listed Data Sources.

DVCS Data Source via DataSync

So, in DVCS it is not possible, at the moment, to connect direct to databases. However, it is possible to upload to DVCS using DataSync. The screens below illustrate how to do this.

First, establish the source (database) and target (DVCS) connections.

Managing Data Sources

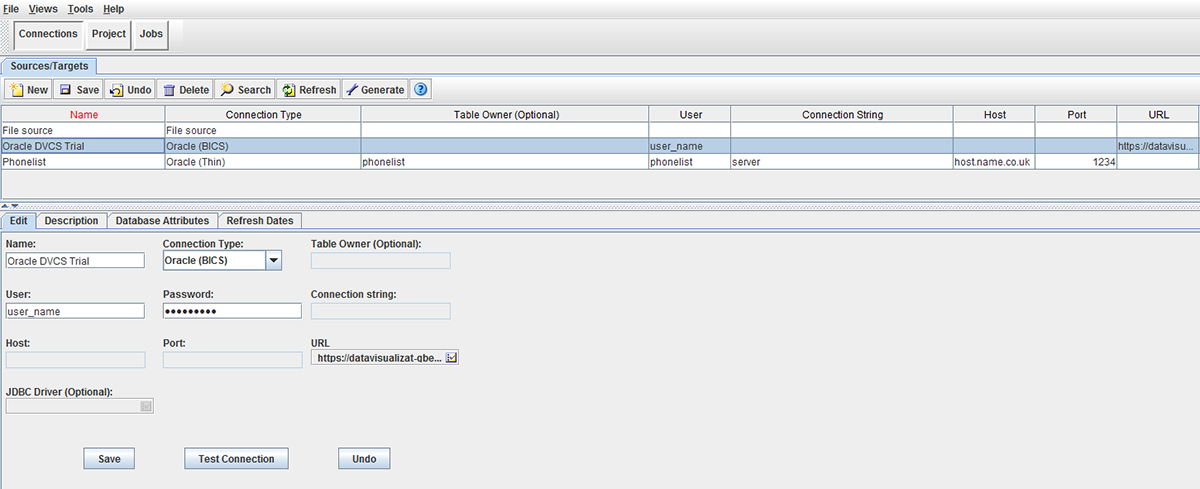

Figure 5. DVCS DataSync Connections.

Second create a project. In the case below, this is based on SQL (Data From SQL), but it could equally have been based on a table (Data From Table). Specify the name of the target data set (what the data source will be called in DVCS). Then specify the database connection and the SQL which acts as the source of the data.

Managing Data Sources

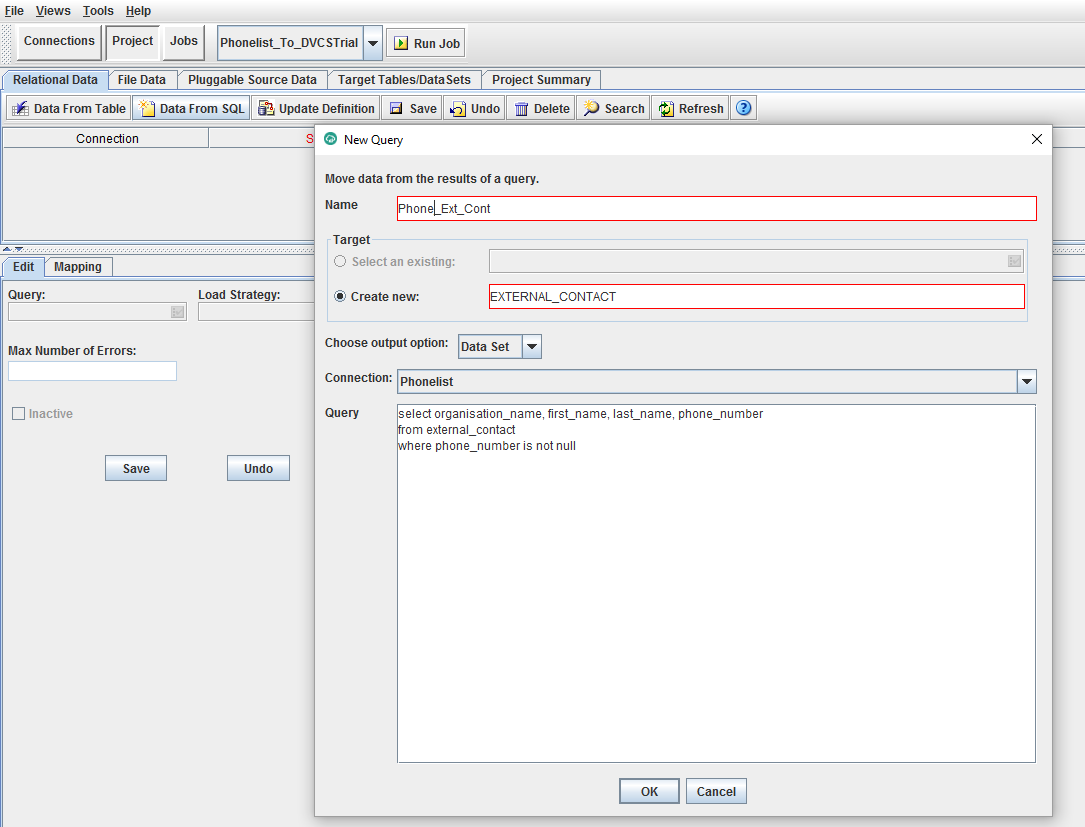

Figure 6. DataSync Create a Project.

Third, create a job to make the connections and transfer the data from database to DVCS. This job could be scheduled.

Managing Data Sources

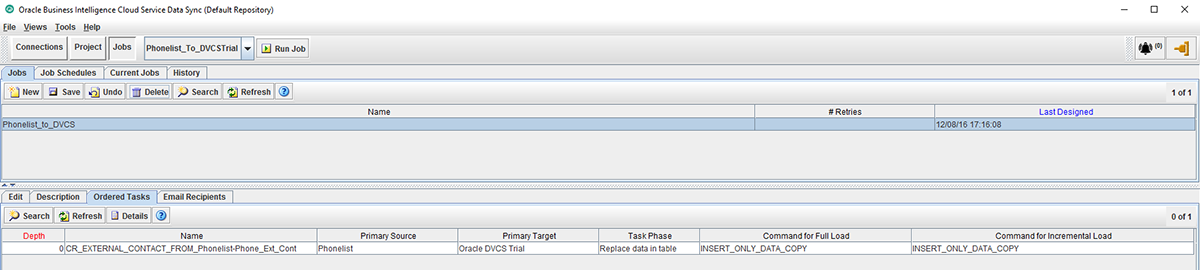

Figure 7. DataSync Create a Job.

Then run the job. The job completes successfully and the EXTERNAL_CONTACT data set is posted to DVCS Data Sources.

Managing Data Sources

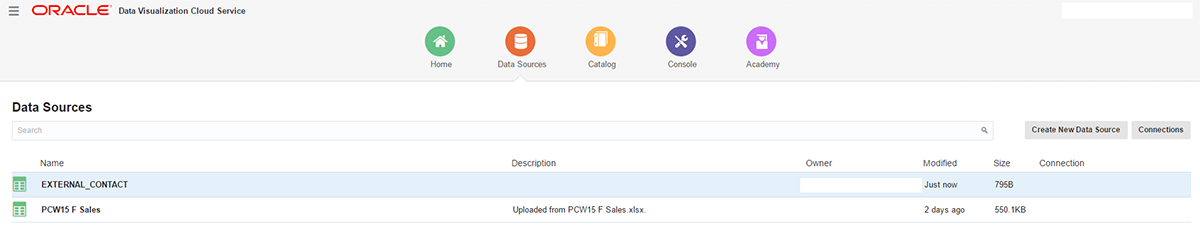

Figure 8. DVCS Data Sources.

Data Mashup

Once you have established all your Data Sources within DV, DV allows users to mashup the data to gain insights within Visual Analyzer (VA). DV automatically attempts to match data sources (find ‘joins’ between them) – if attributes in these data sources share the same name and datatype. This is quite a nice feature, but users will still need to understand the data sufficiently to ensure that the correct matches are made.

These matches are not made within the Data Sources menu, but when the data sources are added to VA projects. So, a VA project is created and a ‘Sales’ data source is added to the project, which contains attribute ‘Item ID’. If a second data source, ‘Items’, which also contains attribute ‘Item ID’, is added to the project DV will match these two datasets.

Managing Data Sources

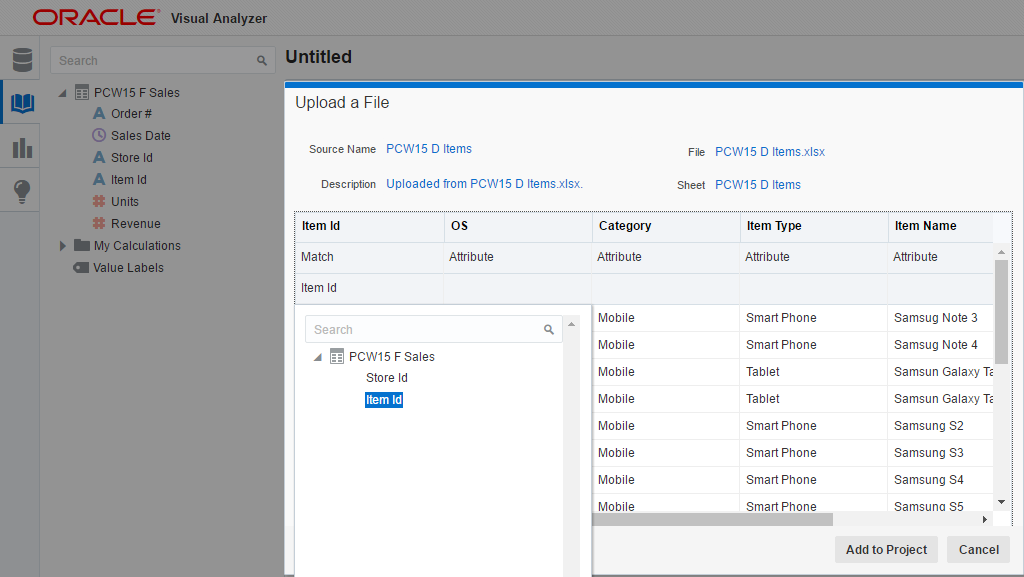

Figure 9. VA Matching Data Sources.

Matches can be removed or created manually.

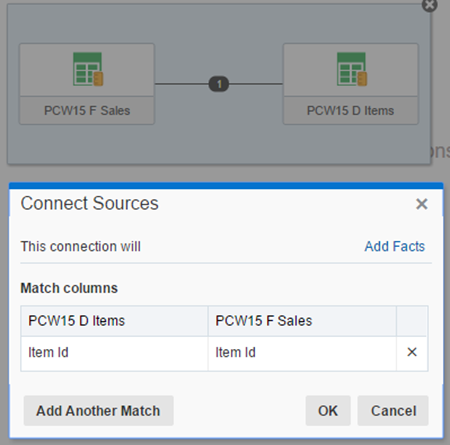

Within VA a source diagram can be opened, which illustrates the matches between all the data sources used by the project. Matches can also be added or removed here.

Managing Data Sources

Figure 10. VA Source Diagram.


So, we can see that DV has the ability to bring data together from multiple sources and help the user to mashup that data to help them understand that data better. Currently, DVD has the advantage of being able to establish direct connections to on-premise RDBMS. I understand that it is in the roadmap for Oracle to align DVCS with DVD for future releases. In the meantime, it is still possible to upload your on-premise data to DVCS using other tools such as DataSync or the DVCS REST API.

Next month I will illustrate some of the rich functionality available for users to gain insights into their data using Visual Analyzer and highlight key differences between DVCS and DVD.
