The Oracle Exadata Deployment Assistant (OEDA) tool is used to perform the initial Oracle Exadata Database Machine configuration.

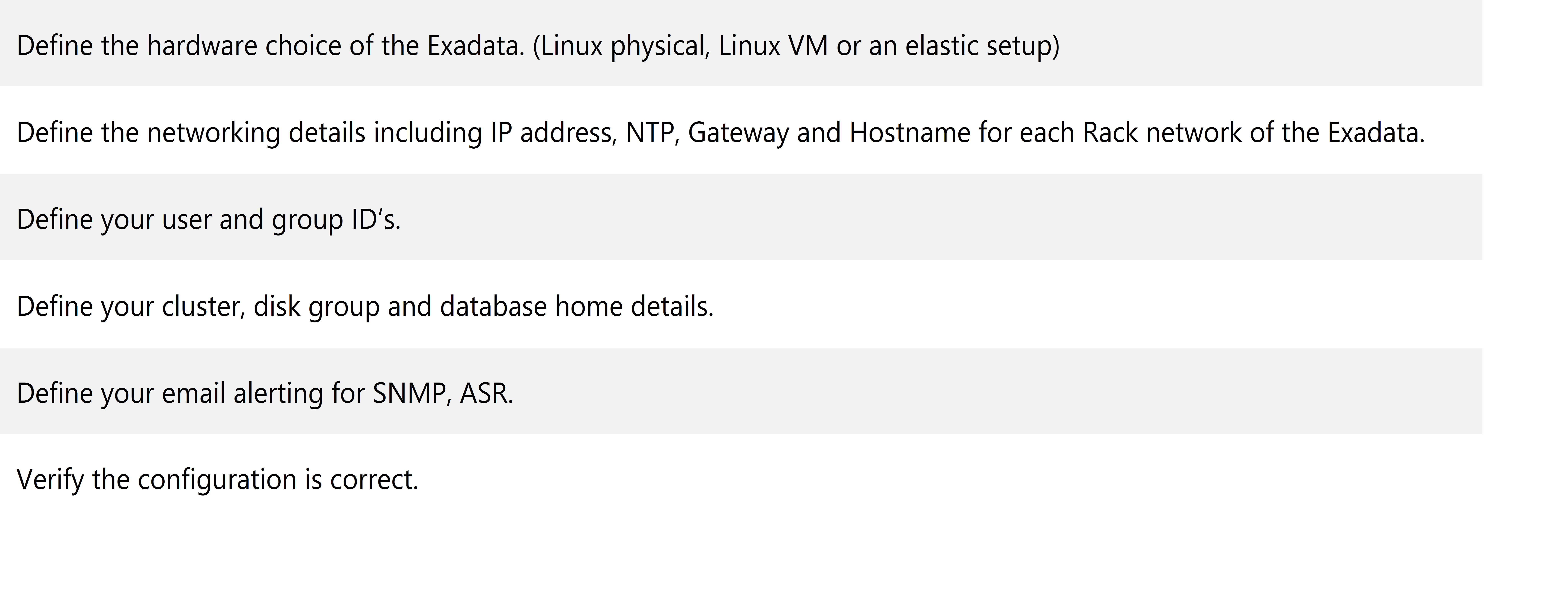

Here you will:
You can download the OEDA from the Oracle Technology Network, ensure you download the Linux version to run relevant scripts on the Exadata once the system is imaged with the correct hardware networking.

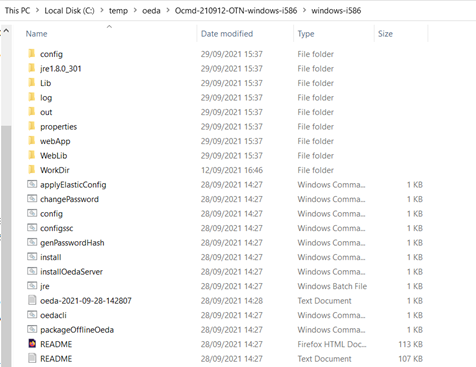

After downloading the patch from Oracle Technology Network (OTN). Unzip the downloaded file and save it to a location on your disk, ensure the path doesn’t contain any spaces as the installation will fail.
For example, C:\temp\oeda not C:\temp\oeda oracle configurator

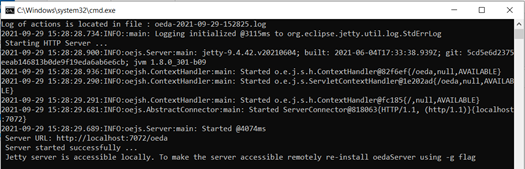

To install the OEDA Server run installOedaServer.cmd.

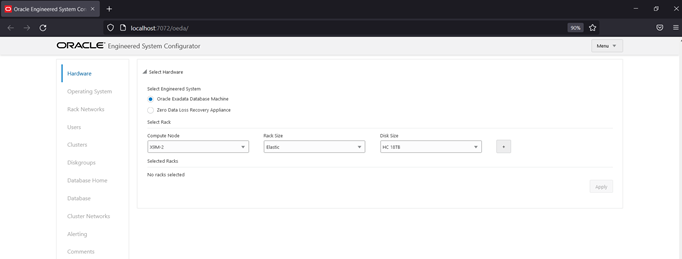

Let’s take look at the Configurator...
Each tab explained:
The OEDA tool can also be used once the system is deployed. Do not remove the XML file from the original deployment as this can be used to make system and cluster changes or additions.
From personal experience always ensure you are using the most recent version of the OEDA to avoid conflicts when running the tool. You may also find at times the import of an old XML file doesn’t work. In these instances, find an older version and use this as a staging point.
Here are two of the tools you can use from the OEDA, which will make your life easier.
