Native Maps in APEX 21.1

Colin Archer Jun 4, 2021 10:45:00 AM
Find out how we can help you build solutions using Oracle APEX with our award winning application development and consultancy services.


Book a meeting with an Oracle APEX expert


Version 21.1 of APEX has recently been released and contains some great new features/improvements. I decided to take a closer look, starting with the new native map component.

This is a brand-new built-in feature of APEX that uses Oracles eLocation Service, allowing maps to be added to an application without the need to use third-party solutions or plugins. This means adding a map to an APEX application is very quick and easy to achieve. Plus, you don’t need to use API keys and it’s FREE!

The map region supports a good range of features and customisations.

  • Choice of several background maps such as OpenStreetMap and Open World Map.
  • Support for three geometry types, Longitude/Latitude, SDO_GEOMETRY and GeoJSON.
  • The data source can be a local table or a REST.
  • Multiple layers that can be toggled on/off.
  • Layers can be points, lines, heat maps, polygons, or extruded polygons.
  • Support for dynamic actions such as clicking on a pointer or map location.
  • Zoom, scale and Compass options.
  • Overview map.
  • Circle and distance tools.
  • Mouse wheel support.
  • New APEX icon types.

To add a map to your application you can either use the wizard to add one as a new page or add one manually to an existing page using the new map region type.

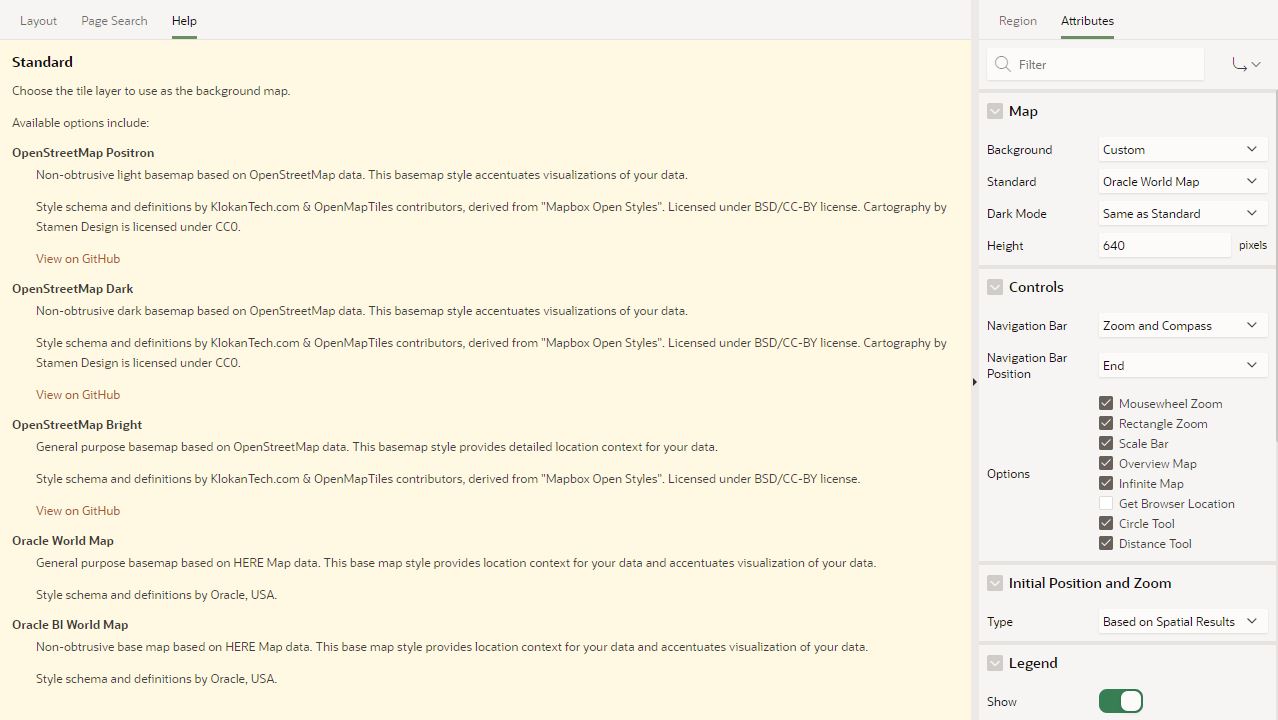

Let’s take a look at adding a new map page using the wizard, but before we start, don’t forget to use the built-in APEX help when learning how a new feature works. For example, if you want to know about the different map backgrounds available, click on the relevant attribute and display the help.

help

Adding a new Map page via the wizard

I am going to add a new map page to my application to display the DSP-Explorer office locations using latitude and longitude coordinates held in a local offices table.

  1. The Create a Page wizard has a new Map type, select this option and specify the page name and number.

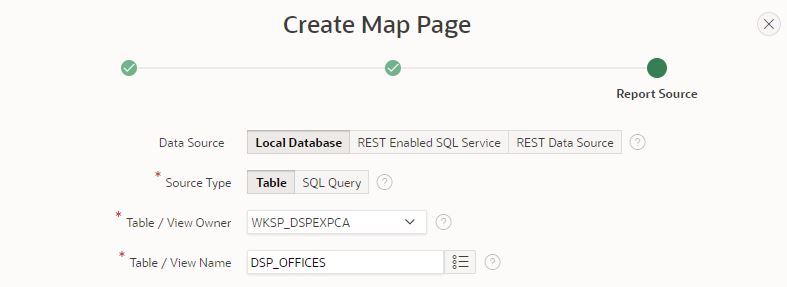

  2. The data source can be a local database or a REST source. For my example, I will be using the Local Database option and a table called DSP_OFFICES.
    create_page

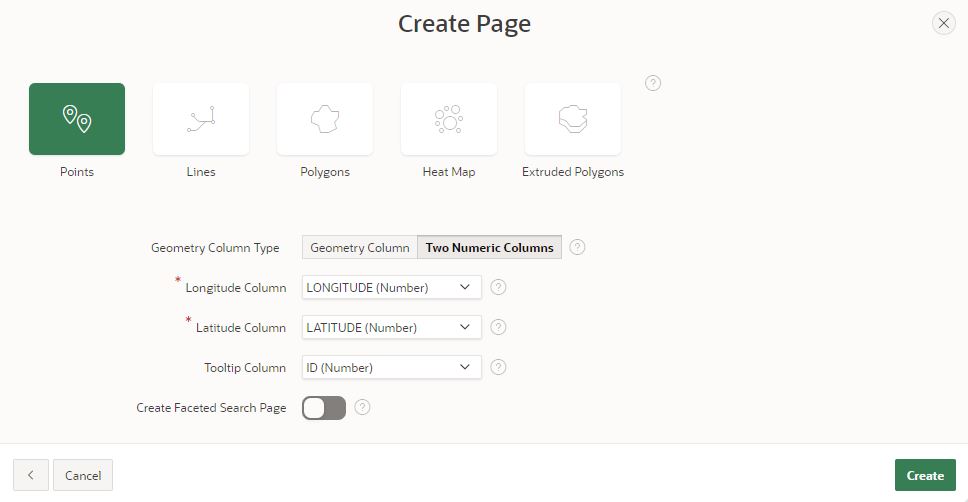

  3. Next, I need to specify the spatial geometry type and source. In this example, I am selecting Points to show office locations, which will be plotted using Latitude and Longitude values held for each row. The Maps also support the use of the SDO_GEOMETRY object type.
    create_page_2

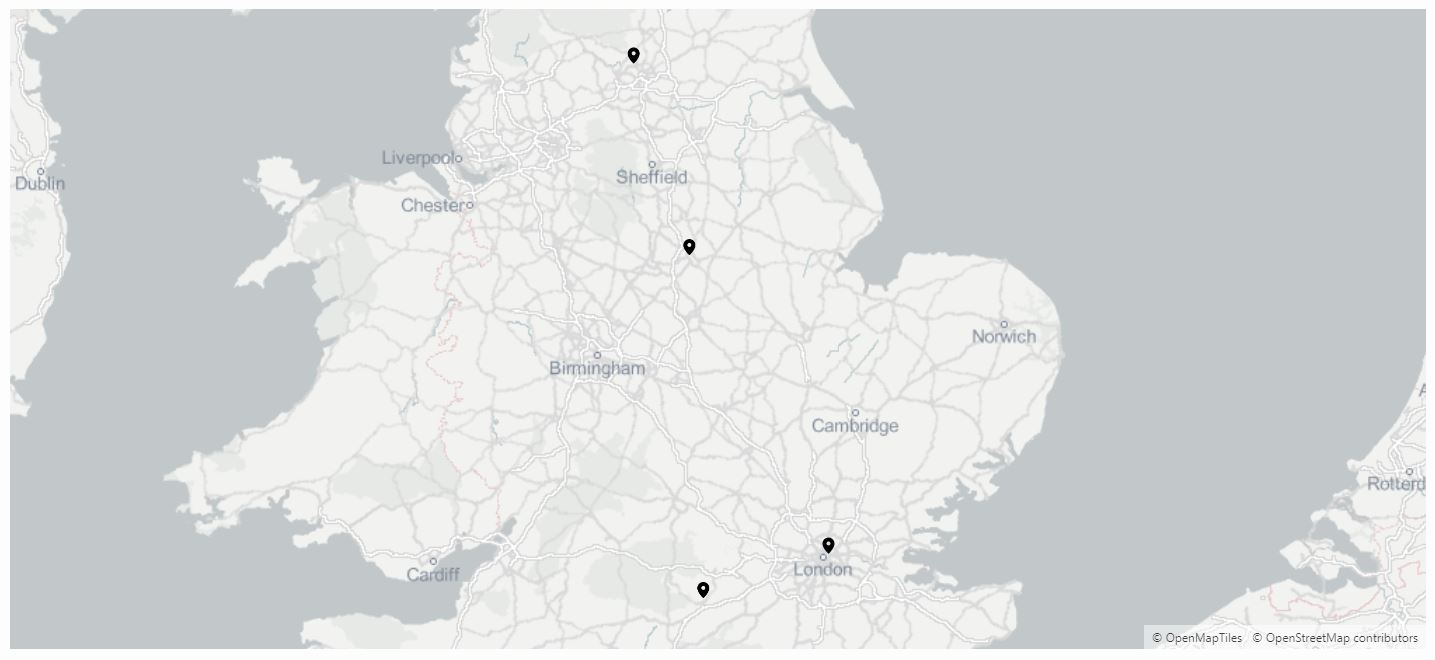

Once I press Create the new page is created and runs with the default settings to show the locations of the offices on the map.

Initial_Map

Map Region Attributes

There are multiple attributes available for customising the map region, such as.

Map Background

This changes the background map. There are currently five options to choose from.

Navigation Bar

Option to include a zoom and compass buttons

Mousewheel Zoom

Zoom in or out by using the mouse wheel

Rectangle Zoom

Zoom the map to an area by drawing a rectangle onto the map

Scale Bar

Display a scale bar on the map

Overview Map

Display an overview map in the lower right

Infinite Map

Infinite map scrolling

Circle Tool

The Circle Tool allows end-users to draw a circle onto the map. When finished, an event is triggered, so that the circle can be processed by Dynamic Actions or JavaScript code

Distance Tool

Allows end-users to measure distances between points on the map

Legend

Include a legend for the map layers, with the option to toggle on/off

Units

Switch between Metric and Imperial

.

Layer Attributes

In addition to the region attributes, there are additional attributes for each layer that allow further customisation, such as.

Layer Type

Type of layer, Points, Lines, Polygons, Heat Map or Extruded Polygons

Icon Source

Set the icon for a layer to a fixed source or column in the layer data source

Appearance

Set the Colour and Opacity

Point Clustering

Toggle on/off clustering of co-located points on the map

Tooltip

Set data and formatting of the information displayed when hovering over an object

Link

Set a link for an object. e.g. Open a page, application, or URL

Into Window

Set the details of a popup to be displayed when an object is clicked (When not using a link)

Zoom Levels

Set the minimum and maximum zoom levels (1-18) to display the layer

Legend

Set the layer to be included/excluded in the legend and if user can toggle on/off



Customising my map page

I am now going to use some of the available region and layer attributes to customise my map of the DSP-Explorer Offices.

Region Attribute Settings

Map

Background

Custom

Standard

OpenStreetMap Bright

Height

700

Controls

Navigation Bar

Zoom and Compass

Mousewheel Zoom

On

Rectangle Zoom

On

Scale Bar

On

Overview Map

On

Circle Tool

On

Distance Tool

On



Layer Attribute Settings

Identification

Label

DSP-Explorer Offices

Point Object

Style

Icon

Icon Source

Icon Class

Icon

fa-map-marker-shine fa-3x

Appearance

Fill Colour

#5F237E

Fill Opacity

0.7

Tooltip

Column

TOWN

Info Window

Title Column

OFFICE_NAME

Body Column

POSTCODE

Legend

Show

On

Enable to Hide

On

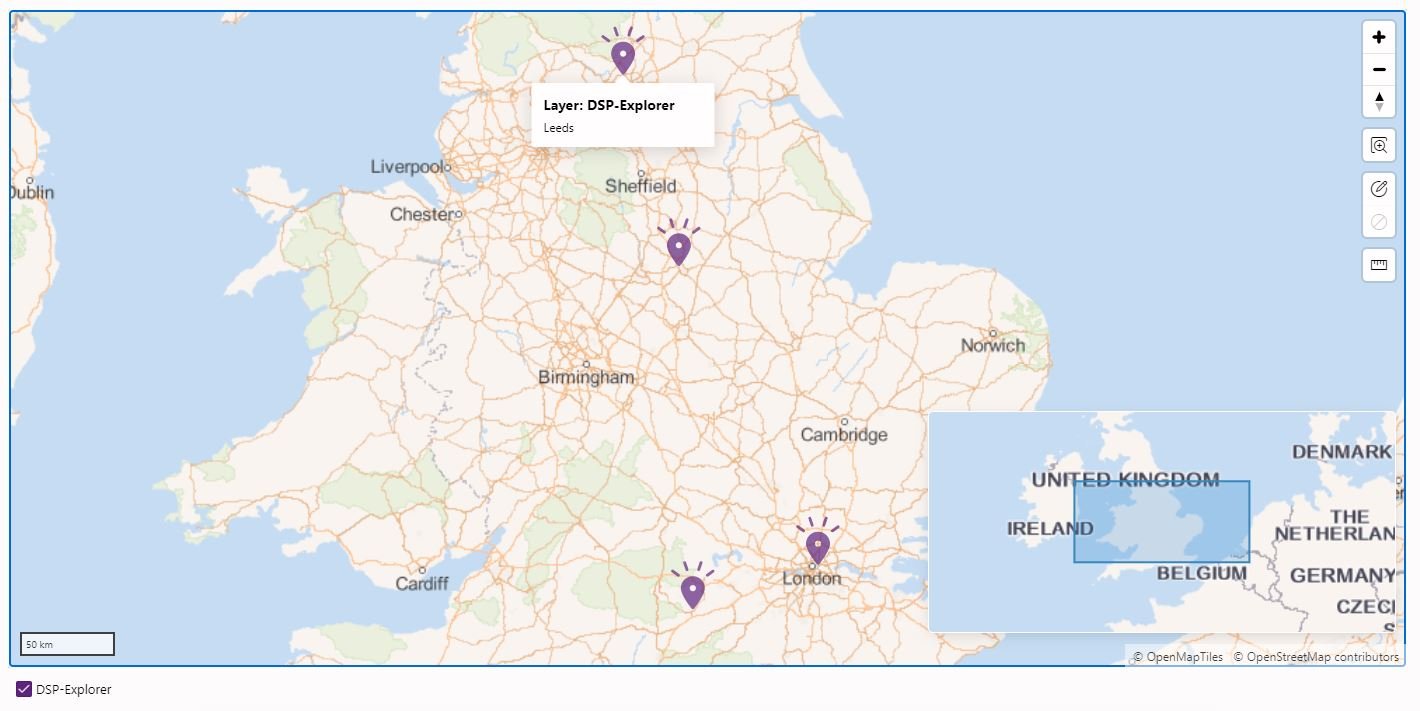

As you can see, the map looks very different now compared to the initial version.

Customised_Map

Dynamic Actions

There are four new dynamic action events for using with the map region

  • Map Changed -   User changes the map view, e.g. zoom in or pans right
  • Map Clicked -   User clicks on the map
  • Map Initialized -   After the map has loaded
  • Map Object Clicked -   User clicks a layer object, e.g. A layer icon is clicked

Let’s look at a simple example of how you can use the map clicked dynamic action. I am going to add a second layer of points to the map which will be added to at runtime by the user.

To do this I will use an APEX Collection to store the latitude and longitude of each map click event, which will be the data source for a second points layer on the map.

  1. Add two hidden items to the map region called P10_LAT and P10_LNG to store the latitude/longitude values when the user clicks on any area of the map other than an existing layer object.
  2. Add a before header process called Create Markers Collection.
    1. Add PL/SQL to create/truncate a collection called MARKERS. APEX_COLLECTION.CREATE_OR_TRUNCATE_COLLECTION('MARKERS');
  3. Add a Map Clicked [Map] event dynamic action to the Map region called Store Lat/Long.
    1. Add a Set Value true action using the JavaScript Expression this.data.lat to store the longitude value in P10_LAT, ensuring it does not fire on initialization.
    2. Add a second Set Value true action using the JavaScript Expression this.data.lat to store the longitude value in P10_LNG, ensuring it does not fire on initialization.
  4. Add a dynamic action to fire when P10_LAT changes called Add Pointer.
    1. Add a PL/SQL server-side-code true action to add the new latitude/longitude values to the MARKERS collection, ensuing both items are submitted into session and it does not fire on initialization. APEX_COLLECTION.ADD_MEMBER(p_collection_name => 'MARKERS' ,                                        p_n001 => :P10_LAT,                                                                                                        p_n002 => :P10_LNG);
    2. Add a second REFRESH true action to refresh the map region.

  5. Add a second layer to the map region to display the markers.
      1. Right-click on the map region in the rendering tree and select Create Layer.
      2. Change the source to SQL Query                                            SELECT seq_id, n001 lat_val, n002 long_val, 'Custom Marker '||seq_id info
        FROM APEX_COLLECTIONS
        WHERE COLLECTION_NAME = 'MARKERS';
      3. Set the column mapping to use the latitude / longitude values and SEQ_ID for the primary key.
      4. Set the points object to use an icon class and set the icon to fa-map-pin-circle with a colour of #e70303.
      5. Set the Tooltip column to INFO.

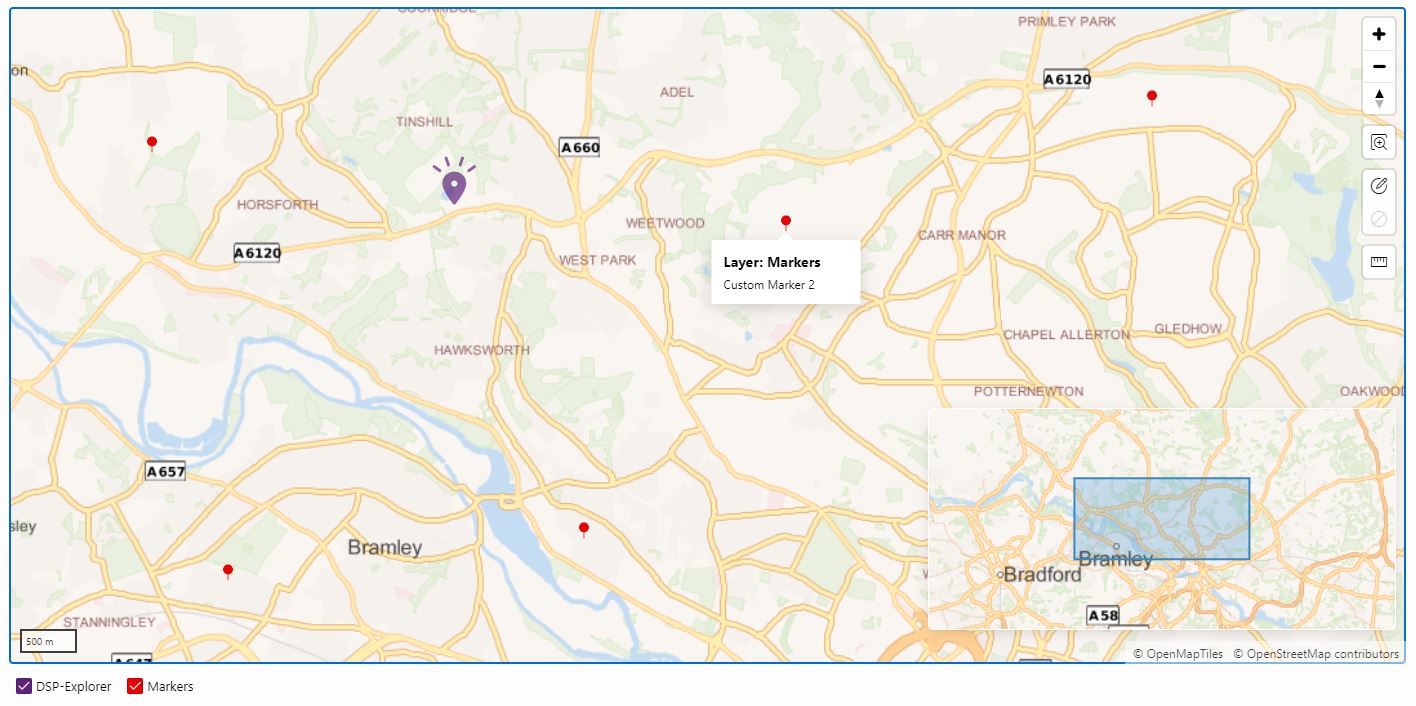

Now when I run the page, each time I click on the map the co-ordinates are recorded and the map refreshed to add the new pin.

Add Markers to Map

This is a very simple example of what you can do but demonstrates that the dynamic actions can easily be used to make your APEX map regions interactive.

If you would like to look at the example map page I built, it is available at apex.oracle.com.
